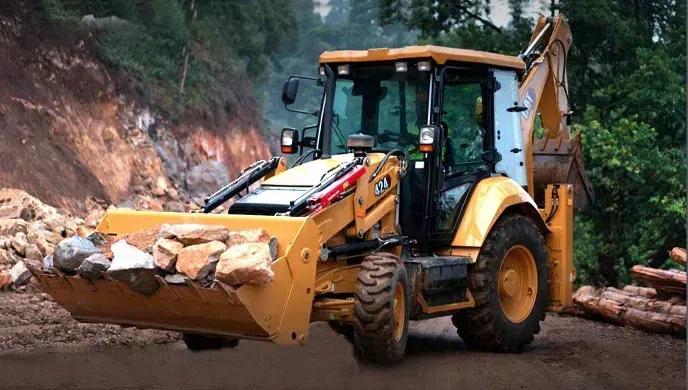

CAT 424

Key Features of CAT 424

Specifications of CAT 424

• General
  • Sub Category
    Backhoe Loader

• Engine
  • Compliant
    BS-V
  • Model
    Cat C3.6* 55 kW Electronic
  • Displacement
    3600 cc
  • Air Intake Type
    Turbo Intercooled
  • Maximum Torque
    424 NM
  • Gross Power
    75 HP

• Hydraulic System
  • System Type
    Closed Center
  • Pump type
    Variable-Flow, Axial Piston
  • Pump Flow
    132 L/min

• Steering
  • Type
    Front Wheel Steering
  • Turning circle Diameter Outside Bucket Not Braked
    12.2 mm

• Loader General Dimension
  • Maximum Lifting Capacity
    3586 Kg
  • Hinge Pin Height
    3473 mm
  • Max Reach At Full Height
    1521 mm
  • Rollback At Ground
    39 Degree
  • Loader Bucket capacity
    1 Cum
  • Dump Angle
    46 °
  • Bucket Capacity Std
    1 Cum
  • Dump Height
    2766 mm

• Backhoe Loader Dimension
  • Maxd Dig Depth
    4707 mm
  • Max Working Height
    4394 mm
  • Bucket Rotation
    205 Deg.
  • Backhoe Bucket capacity
    0.27 Cum

• Overall Dimension & Weight
  • Width Over Stabilizer
    2242 MM
  • Minimum Ground Clearance
    454 mm
  • Height to top of cabin
    2928 mm
  • Overall transport Height
    3732 mm
  • Max Operating Weight
    8760 Kg
  • Transport Length
    5708 mm
  • Wheelbase
    2200 mm

• Service Capacities
  • transmission Oil Capacitysystem
    14 Ltr
  • Coolant
    20 Ltr
  • Hydraulic oil - System
    42 Ltr
  • Engine Oil
    9 Ltr
  • Rear Axle
    16.5 Ltr
  • Fuel Tank
    160 Ltr

• Axle
  • front axle Oscillation
    9 Degree

• Tyre
  • standard tyre rear
    16.9-28

• Travel System
  • Forward
    5.7/9.6/23/40
  • Reverse
    5.7/9.6/23/40
