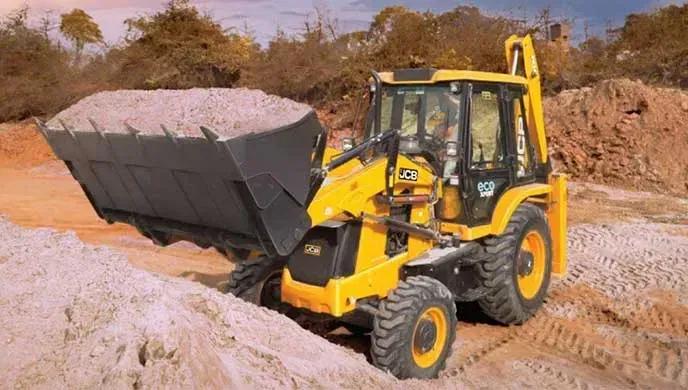

JCB 3DX Plus

No reviews yet

Write a Review

The JCB 3DX Plus is a renowned backhoe loader in India, celebrated for its exceptional reliability and low maintenance. It features a robust 55kW (74hp) engine delivering 400Nm of torque, ensuring high work output. With a 1 Cubic Meter bucket capacity and an operating weight of 7510 Kg, it excels in handling heavy construction materials. The 3DX Plus is equipped with a 128-liter fuel tank for extended operation, and its hydraulic system is supported by 92 liters of oil for efficiency and smooth functionality. The 3DX Plus is priced between ₹30 Lakh and ₹32 Lakh, making it a formidable choice for construction needs.

₹30 - ₹32 Lakh^*

^*Prices are subjected to change

EMI ₹ 20,362 For 5 YearsEMI Calculator

Key Features of JCB 3DX Plus

Specifications of JCB 3DX Plus

General
- Sub Category
  Backhoe Loader
Engine
- Compliant
  CEV Stage lV
- Displacement
  4.4 cc
- Model
  JCB 444
- Gross Power
  55kW (74hp) @ 2200 rpm
- Maximum Torque
  400 NM
Hydraulic System
- Pump Flow
  114 Lpm
Steering
- Type
  Power track steering
- System Pressure
  2 320 p.s.i. (160 bar)
Loader General Dimension
- Dump Height
  2740 mm
- Load Over Height
  3320 mm
- Hinge Pin Height
  3540 mm
- Hinge Pin Forward Reach
  250 mm
- Reach At Ground
  1420 mm
- Dump Angle
  38 °
- Rollback At Ground
  45 Degree
- Bucket Capacity Std
  0.26 Cum
Backhoe Loader Dimension
- Reach at full height to slew center
  2740 mm
- Max Working Height
  5970 mm
- Max Load Over Height
  4180 mm
- Reach Ground level to rear wheel center
  6720 mm
- Maxd Dig Depth
  4770 mm
- Bucket Rotation
  185 deg
- dipper Tear Out Force
  3257 kgf
- Bucket Breakout Force
  5959 kgf
Overall Dimension & Weight
- Track Width Front
  1860 MM
- Height to top of cabin
  2870 mm
- Track Width Rear
  1730 mm
- Wheelbase
  2170 mm
- Width Over Bucket
  2350 MM
- Minimum Ground Clearance
  510 mm
- Max Operating Weight
  7510 Kg
- Transport Length
  5900 mm
Service Capacities
- Coolant
  20.5 Ltr
- Hydraulic oil - System
  92 Ltr
- Engine Oil
  15 Ltr
- Rear Axle
  20 Ltr
- transmission Oil Capacitysystem
  17.5 Ltr
- Fuel Tank
  128 Ltr
Axle
- Front
  Steer axle, centrally pivoted, with oscillation angle of 16
- Rear
  Drive axle rigidly mounted, incorporates JCB Max-Trac torque proportioning differential, driven by short prop shaft from gear box
Brakes
- Brakes service
  JCB ‘Q’ brakes, hydraulically actuated, dual line, self adjusting (compensated), oil immersed, multi-disc type on the rear axle, well protected from dirt, water etc. requiring no maintenance. Operated
- Brakes Parking
  Hand operated, disc brakes on rear axle input disc
Tyre
- Standard tyre front
  9 x 16 - 16 PR
- standard tyre rear
  16.9 x 28 - 12 PR
Travel System
- Forward
  6.5/10.5/19.8/36
- Reverse
  6.5/10.5

JCB 3DX Plus Brochure

Download the brochure in just one click to view JCB 3DX Plus price, specs and features of all the variants.

JCB 3DX Plus images

JCB 3DX Plus User Reviews & Rating

This product has not been reviewed yet. Your opinion could help others

Your questions, answered

Can not find what you are looking for?

Ask our experts

What is the engine power of the JCB 3DX Plus?
The JCB 3DX Plus engine delivers 55kW (74hp) @ 2200 rpm.
What is the operating weight of the JCB 3DX Plus?
The operating weight of the JCB 3DX Plus is 7510 Kg.
What is the bucket capacity of the JCB 3DX Plus?
The JCB 3DX Plus has a bucket capacity of 1 Cubic Meter.
What is the fuel tank capacity of the JCB 3DX Plus?
The fuel tank capacity of the JCB 3DX Plus is 128 liters.
What is the price range of the JCB 3DX Plus in India?
The price range of the JCB 3DX Plus in India is between ₹30 Lakh and ₹32 Lakh.
What type of tyres does the JCB 3DX Plus use?
The JCB 3DX Plus uses 9 x 16 - 16 PR front tyres and 16.9 x 28 - 12 PR rear tyres.
What is the maximum reach at full height of the JCB 3DX Plus?
The maximum reach at full height of the JCB 3DX Plus is 1150 mm.
