BharatBenz 1417R

Key Features of BharatBenz 1417R

• Engine

  4D34i
• Power

  170
• GVW

  14050 KG

Specifications of BharatBenz 1417R

• Performance
  • Power
    170
  • Max Torque
    520 Nm
  • Engine Cylinders
    4
  • GVW
    14050 KG
  • Engine
    4D34i
  • Fuel Tank
    215 Ltrs.
  • Gradeability
    39.2 (%)
  • Max Speed
    80 KMPH
  • Engine Norm
    BS-6 Phase 2

• Dimensions
  • Wheelbase
    4250 MM
  • Ground Clearance
    220 MM
  • Minimum Turning Radius
    16700 MM
  • Length
    8030 MM
  • Width
    2240 MM
  • Height
    2475 MM

• Brakes Suspension
  • Parking Brakes
    Spring Actuated with Hand Brake Valve @ Cab
  • Front Axle
    IF 5.0
  • Rear Axle
    DANA - S145
  • Front Suspension
    Multileaf Spring
  • Rear Suspension
    Multileaf Spring
  • Brakes
    Pneumatic, Foot operated, Dual line (with ABS)

• Clutch Transmission
  • Gearbox
    G85, 6 forward + 1 Reverse
  • Transmission
    Mechanical Sychromesh
  • Clutch
    362mm Single Dry Plate, Hydraulic Actuated
  • Steering
    Hydraulic Power Assisted
  • Power Steering
    Yes

• Body Cabin
  • Cabin Type
    Day type Cabin
  • Seating Capacity
    Driver + 2 Passenger

• Tyre
  • Front Tyre
    8.25R20 (S), 255/70R22.5 (O)
  • Rear Tyre
    8.25R20 (S), 255/70R22.5 (O)

• Others
  • Battery
    24 v,75Ah/100Ah (HAP)
  • Seat Belts
    Yes

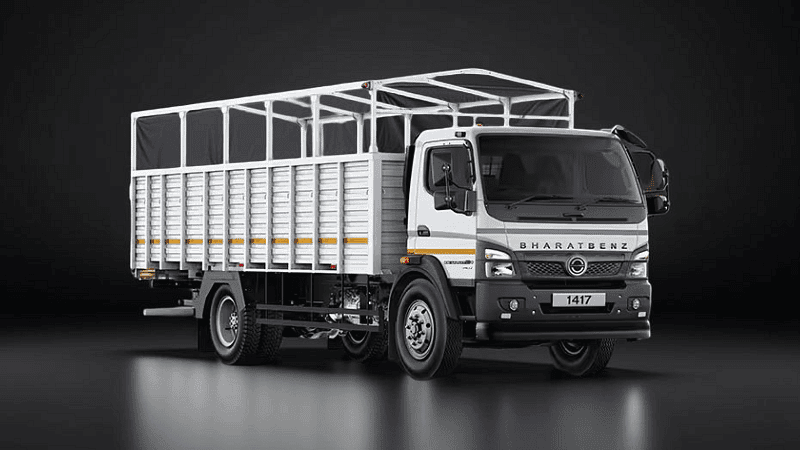

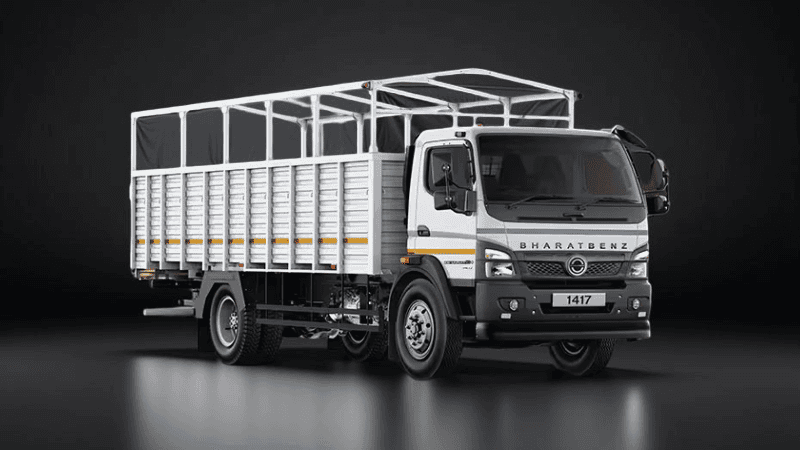

BharatBenz 1417R images
