BharatBenz 3828R

Key Features of BharatBenz 3828R

• Engine

  OM 926
• Power

  282
• GVW

  38000 KG

Specifications of BharatBenz 3828R

• Performance
  • Power
    282
  • Fuel Tank
    310 Ltrs.
  • GVW
    38000 KG
  • Engine Norm
    BS-6 Phase 2
  • Max Torque
    1100 Nm
  • Gradeability
    33.7 (%)
  • Engine
    OM 926
  • Engine Cylinders
    6
  • Max Speed
    80 KMPH

• Dimensions
  • Load Body Size
    26 ft
  • Length
    10435 MM
  • Width
    2490 MM
  • Wheelbase
    5900 MM
  • Height
    2930 MM
  • Ground Clearance
    170 MM

• Brakes Suspension
  • Rear Axle
    IR440+
  • Rear Suspension
    Semi elliptic
  • Parking Brakes
    Pneumatically Operated Hand Control Valve
  • Front Axle
    IF 7.0
  • Front Suspension
    Parabolic leaf spring

• Clutch Transmission
  • Gearbox
    G131, 8F + 1R, Mechanical, synchromesh gears
  • Clutch
    395mm dia, Single dry plate, hydraulic control
  • Steering
    Hydraulic Power Assisted

• Tyre
  • Tubeless Tyre
    295/80R22.5
  • Front Tyre
    295/90R20
  • Rear Tyre
    295/90R20

• Others
  • Battery
    24V120Ah

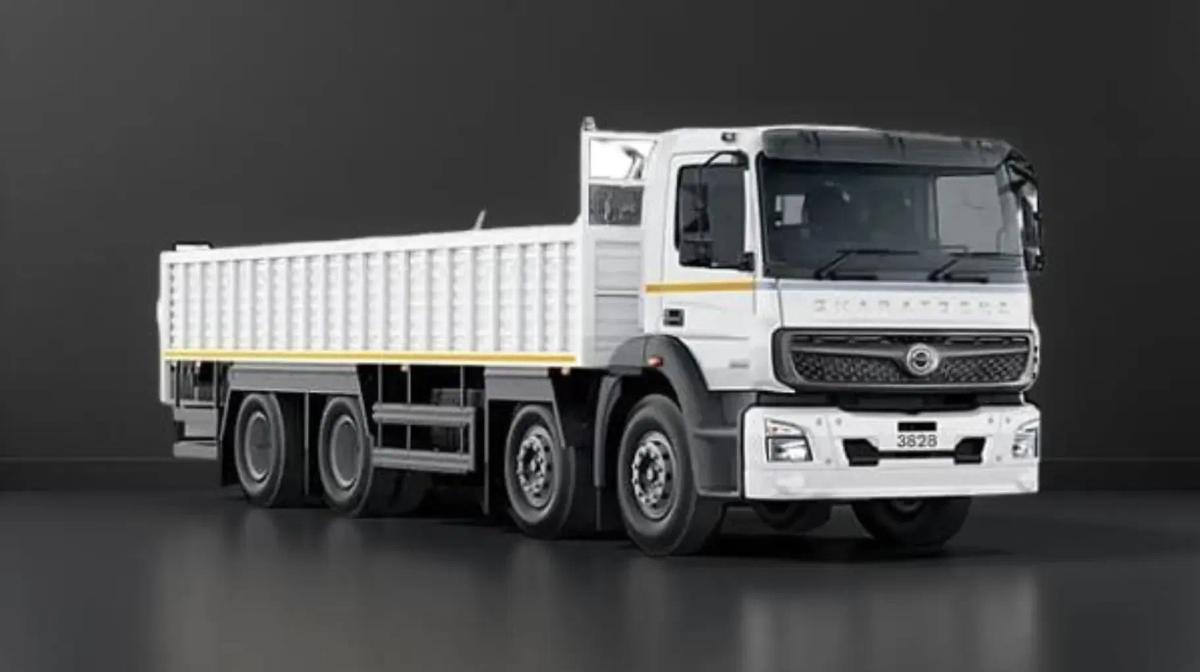

BharatBenz 3828R images
