BharatBenz 4828R

Key Features of BharatBenz 4828R

• Engine

  OM 926
• Power

  281
• GVW

  47500 KG

Specifications of BharatBenz 4828R

• Performance
  • Gradeability
    25 (%)
  • Max Torque
    1100 Nm
  • GVW
    47500 KG
  • Power
    281
  • Fuel Tank
    330 Ltrs.
  • Engine
    OM 926
  • Max Speed
    80 KMPH
  • Engine Norm
    BS-6 Phase 2
  • Engine Cylinders
    6

• Dimensions
  • Length
    11492 MM
  • Height
    2985 MM
  • Wheelbase
    6575 MM
  • Minimum Turning Radius
    24000 MM
  • Width
    2490 MM
  • Load Body Size
    30.3ft
  • Ground Clearance
    178 MM

• Brakes Suspension
  • Parking Brakes
    Pneumatically Operated Hand Control Valve
  • Front Suspension
    Parabolic leaf spring
  • Abs
    Yes
  • Brakes
    Pneumatically foot operated dual line brakes
  • Front Axle
    IF7.0
  • Rear Axle
    RA1 : RS440+RA2 : IT 14
  • Rear Suspension
    New Parabolic Bogie

• Clutch Transmission
  • Steering
    Hydraulic Power Assisted
  • Transmission
    Manual
  • Power Steering
    Yes
  • Gearbox
    G 131, 8 Forward + 1 Reverse
  • Clutch
    Single Dry Plate,Hydraulic Control

• Body Cabin
  • Tiltable Cabin
    No
  • Body Option
    Customizable body
  • Seating Capacity
    Driver +1 Passenger
  • Chassis Type
    Chassis with Cabin
  • Tiltable Steering
    No
  • Cabin Type
    Mid Cabin

• Tyre
  • Front Tyre
    295/90R20
  • Rear Tyre
    295/90R20
  • Tubeless Tyre
    Yes

• Others
  • Battery
    24V-120 AH
  • Air Condition
    No
  • Seat Belts
    Yes
  • Seat Type
    Standard
  • Driver Info Display
    Yes
  • Adjustable Driver Seat
    Yes
  • Telematics
    No
  • Cruise Control
    No

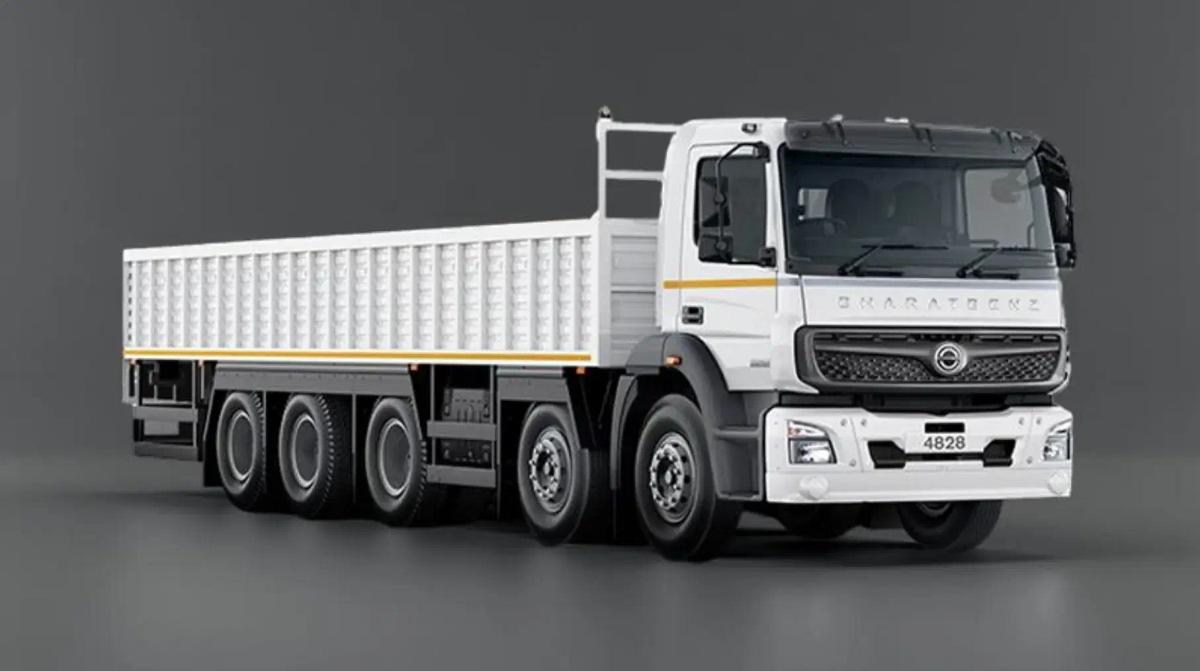

BharatBenz 4828R images
