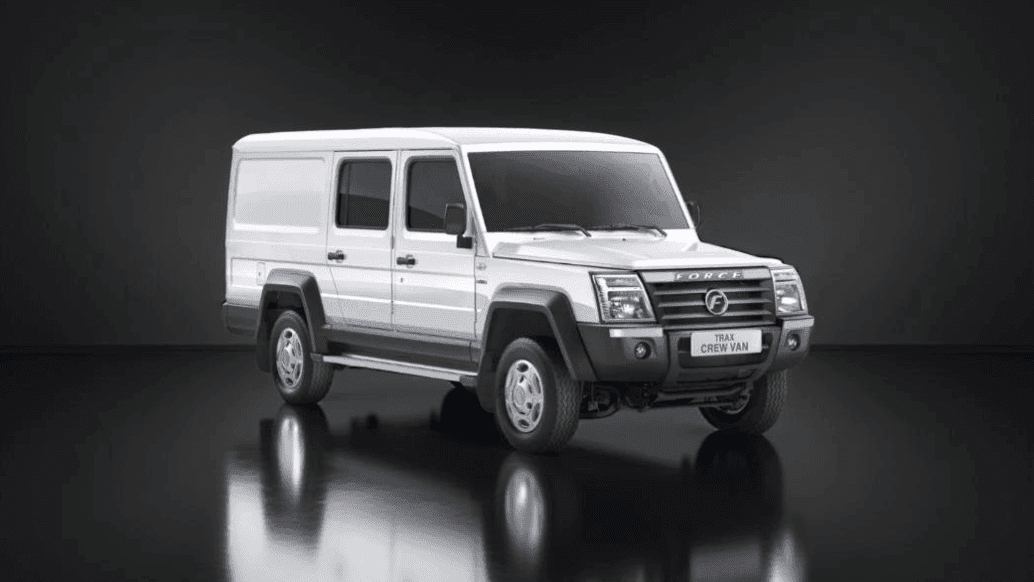

Force Trax Crew Van

Key Features of Force Trax Crew Van

• Engine

  FM2.6CR CD
• Power

  91
• GVW

  3100 KG
• Payload Capacity

  920 KG

Specifications of Force Trax Crew Van

• Performance
  • Engine
    FM2.6CR CD
  • Power
    91
  • GVW
    3100 KG
  • Payload Capacity
    920 KG
  • Engine Norm
    BS-6 Phase 2
  • Engine Cylinders
    4
  • Fuel Tank
    63.5 Ltrs.
  • Max Torque
    250 Nm
  • Max Speed
    80 KMPH

• Dimensions
  • Length
    5120 MM
  • Width
    1818 MM
  • Height
    2027 MM
  • Wheelbase
    3050 MM
  • Ground Clearance
    191 MM

• Brakes Suspension
  • Front Suspension
    Independent type, double wishbone,Torsion bar with anti roll bar
  • Rear Suspension
    Leaf Spring type with anti roll bar
  • Brakes
    Dual circuit, hydraulic, vacuum assisted with autowear adjuster, ABS with EBD Disc/Drum Brakes
  • Parking Brakes
    Mechanical acting on rear wheels

• Clutch Transmission
  • Gearbox
    G28/5B , 5 Forward + 1 Reverse
  • Steering
    Power steering - Rack & Pinion
  • Transmission
    Manual, Synchromesh

• Body Cabin
  • Chassis Type
    Rectangular, C in C type chassis section
  • Seating Capacity
    Driver + 2/5 Passenger

• Tyre
  • Front Tyre
    215/75 R15 LT Radial with Tube / Tubeless
  • Rear Tyre
    215/75 R15 LT Radial with Tube / Tubeless
  • Tubeless Tyre
    Yes

• Others
  • Air Condition
    Yes
  • Seat Belts
    Yes
  • Seat Type
    Standard
  • Driver Info Display
    Yes
  • Fog Lights
    yes
