Tata 709g LPT

Key Features of Tata 709g LPT

• Engine

  3.8 SGI BS6 CNG
• Power

  85
• GVW

  7490 KG
• Payload Capacity

  4500 KG

Specifications of Tata 709g LPT

• Performance
  • Max Torque
    285 Nm
  • Power
    85
  • Mileage
    9 KMPL
  • GVW
    7490 KG
  • Engine Norm
    BS-6 Phase 2
  • Engine Cylinders
    4
  • Gradeability
    25 (%)
  • Max Speed
    80 KMPH
  • Engine
    3.8 SGI BS6 CNG
  • Fuel Tank
    240 / 318 Ltrs.
  • Kerb Weight
    3120 KG
  • Payload Capacity
    4500 KG

• Dimensions
  • Width
    2255 MM
  • Height
    2940 MM
  • Wheelbase
    3900 MM
  • Minimum Turning Radius
    6750 MM
  • Ground Clearance
    216 MM
  • Length
    8120 MM

• Brakes Suspension
  • Rear Suspension
    Semi elliptical Leaf spring
  • Rear Axle
    Banjo Type
  • Front Suspension
    Semi elliptical leaf spring and 2 no hydraulic double acting telescopic type shock absorber
  • Abs
    No
  • Brakes
    Full S-cam air Brakes
  • Parking Brakes
    Graduated valve controlled spring brake chamber integral with rear brake

• Clutch Transmission
  • Steering
    Tilt and Telescopic Power Steering
  • Transmission
    Manual
  • Power Steering
    Yes
  • Clutch
    Single plate dry friction type- 280 Mm dia.
  • Gearbox
    GBS27 5 Speed Manual Synchromesh Gearbox (5F, 1R), PTOP

• Body Cabin
  • Tiltable Steering
    Yes
  • Seating Capacity
    Driver +1 Passenger
  • Body Option
    Customizable body
  • Arm Rest
    No
  • Chassis Type
    Chassis with Cabin
  • Cabin Type
    Day Cabin

• Tyre
  • Tubeless Tyre
    No
  • Rear Tyre
    8.25-16 16
  • Front Tyre
    8.25-16 16

• Others
  • Air Condition
    Yes
  • Telematics
    No
  • Cruise Control
    No
  • Seat Belts
    Yes
  • Seat Type
    Standard
  • Hill Hold
    No
  • Fog Lights
    No
  • Driver Info Display
    Yes
  • Adjustable Driver Seat
    Yes
  • Navigation System
    No
  • Battery
    24 V - 100 Ah

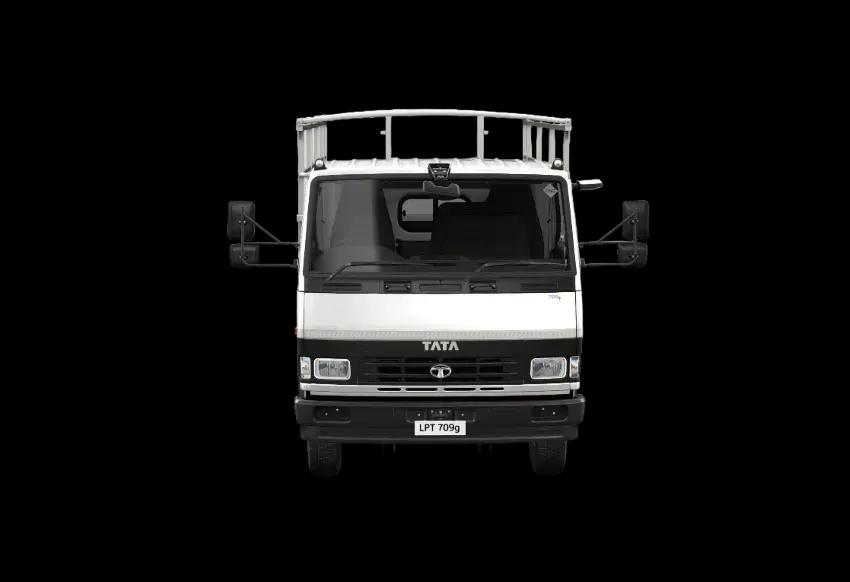

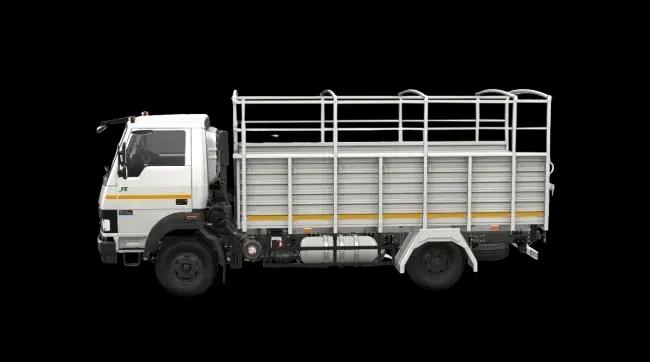

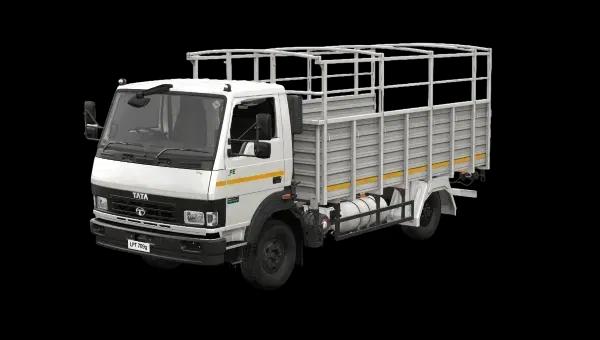

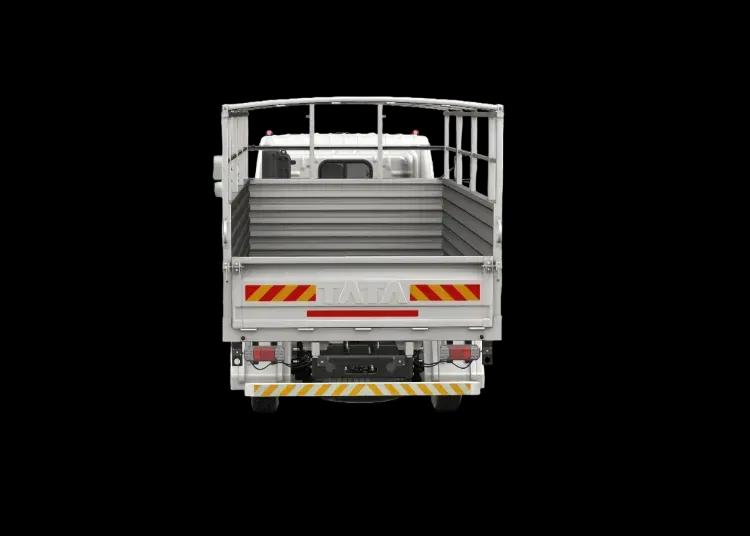

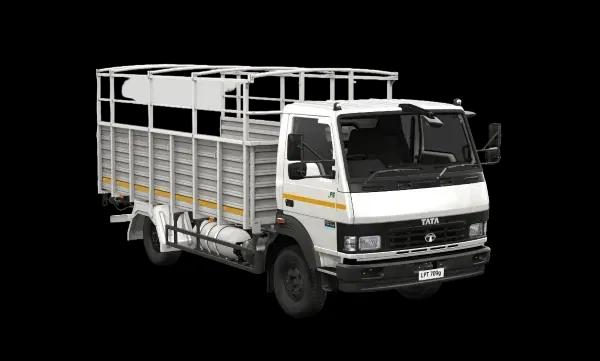

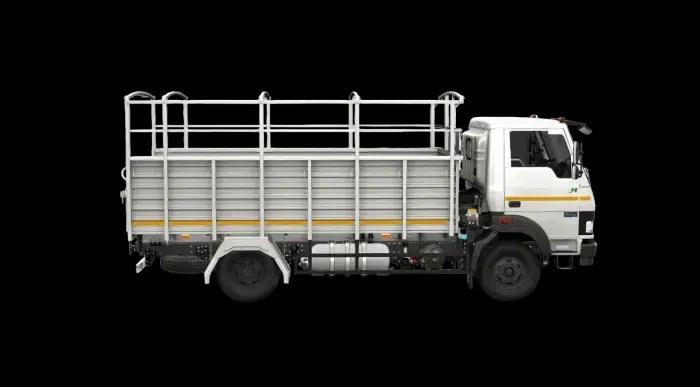

Tata 709g LPT images
