Tata Ace Gold

Key Features of Tata Ace Gold

• Engine

  Tata 275 Gasoline MPFI, 4 stroke water cooled
• Power

  30
• GVW

  1615 KG
• Payload Capacity

  750 KG

Specifications of Tata Ace Gold

• Performance
  • Mileage
    21-22 KMPL
  • Gradeability
    30 (%)
  • Engine Cylinders
    2
  • Engine
    Tata 275 Gasoline MPFI, 4 stroke water cooled
  • Max Speed
    70 KMPH
  • Fuel Tank
    26 Ltrs.
  • GVW
    1615 KG
  • Kerb Weight
    865 KG
  • Payload Capacity
    750 KG
  • Engine Norm
    BS-6
  • Power
    30
  • Max Torque
    55 Nm

• Dimensions
  • Length
    3800 MM
  • Width
    1500 MM
  • Height
    1840 MM
  • Wheelbase
    2100 MM
  • Ground Clearance
    160 MM
  • Minimum Turning Radius
    4300 MM

• Brakes Suspension
  • Front Suspension
    Parabolic leaf spring
  • Abs
    No
  • Rear Suspension
    Semi elliptical Leaf spring
  • Parking Brakes
    Yes
  • Brakes
    Disc brakes (C51 Caliper), Drum brakes 200mm dia. x 30mm

• Clutch Transmission
  • Power Steering
    No
  • Clutch
    Single plate dry friction diaphragm type
  • Transmission
    Manual
  • Steering
    Mechanical, variable ratio (23.1 to 28.9:1) Variable, 380 mm dia
  • Gearbox
    GBS 65, 5 Forward + 1 Reverse

• Body Cabin
  • Body Option
    Deck Body
  • Cabin Type
    Day Cabin
  • Tiltable Steering
    No
  • Arm Rest
    No
  • Chassis Type
    Chassis with Cabin
  • Seating Capacity
    Driver + 1 Passenger

• Tyre
  • Tubeless Tyre
    No
  • Front Tyre
    145R12 LT 8 RADIAL
  • Rear Tyre
    145R12 LT 8 RADIAL

• Others
  • Cruise Control
    No
  • Driver Info Display
    Yes
  • Adjustable Driver Seat
    Yes
  • Navigation System
    No
  • Telematics
    No
  • Air Condition
    No
  • Seat Belts
    Yes
  • Seat Type
    Standard
  • Hill Hold
    No
  • Fog Lights
    No

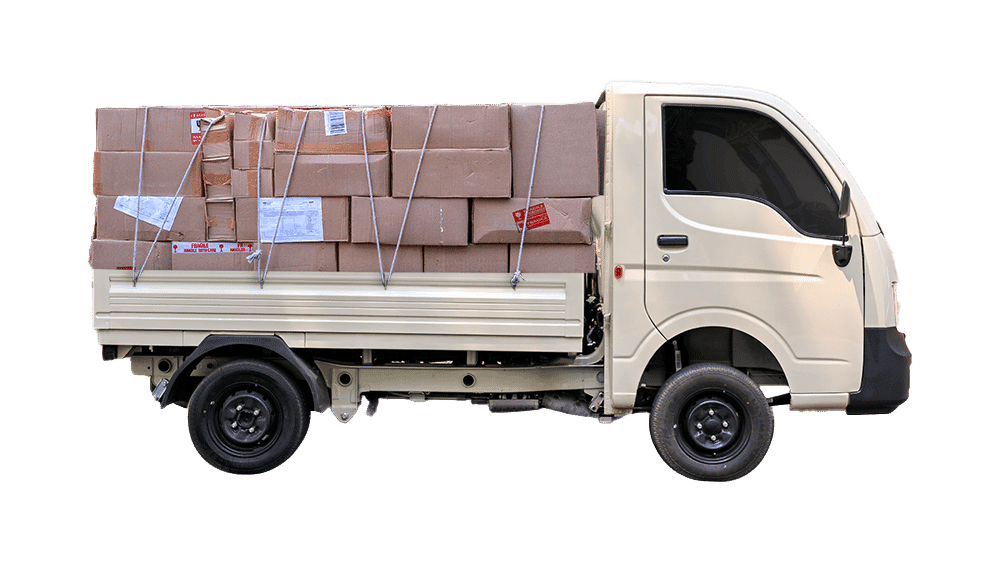

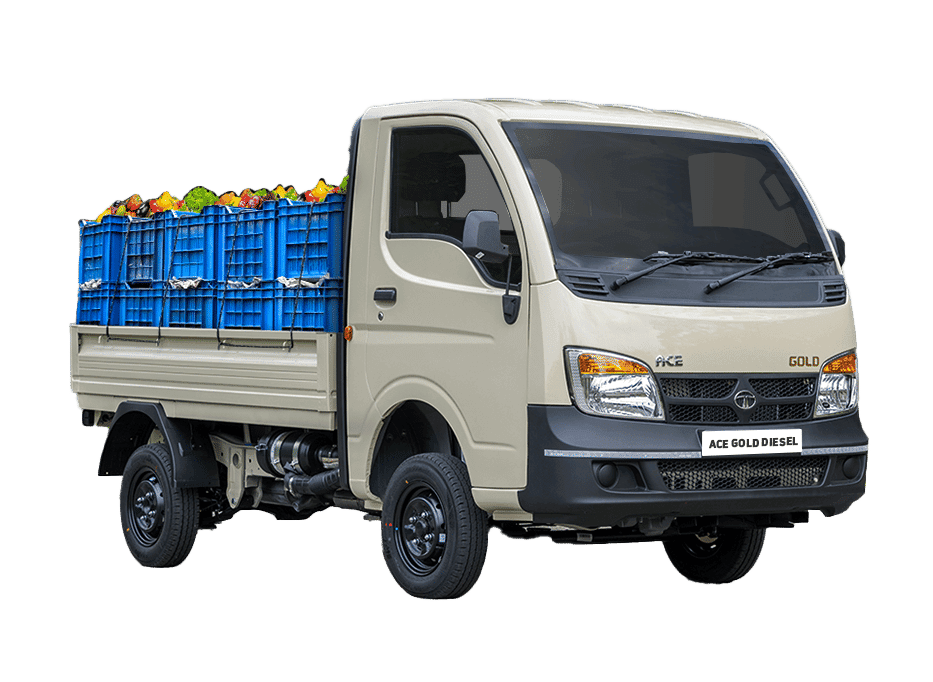

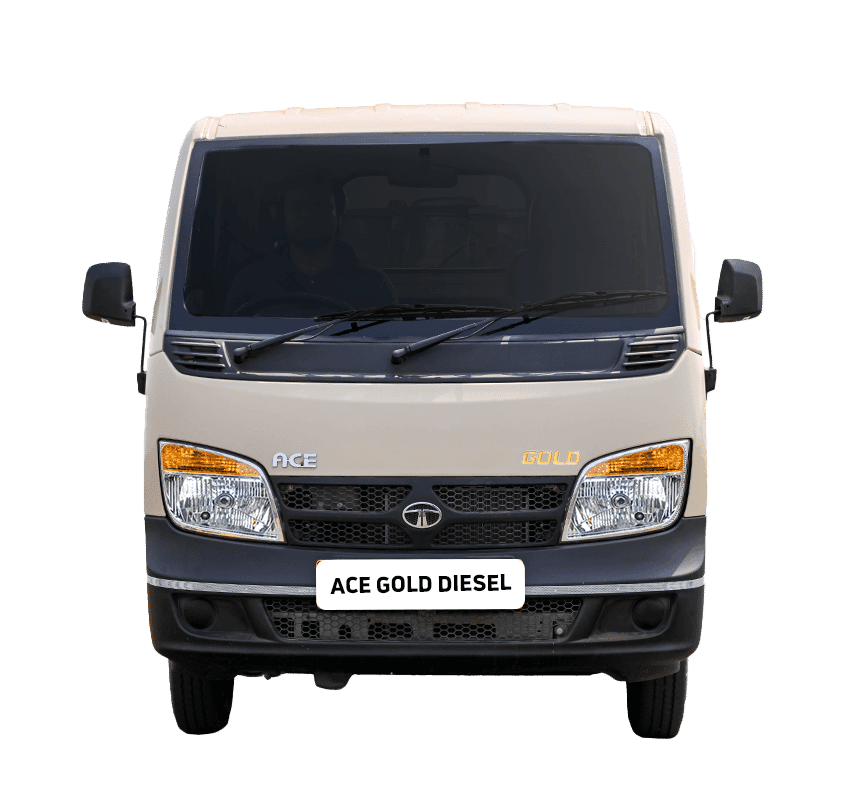

Tata Ace Gold images
