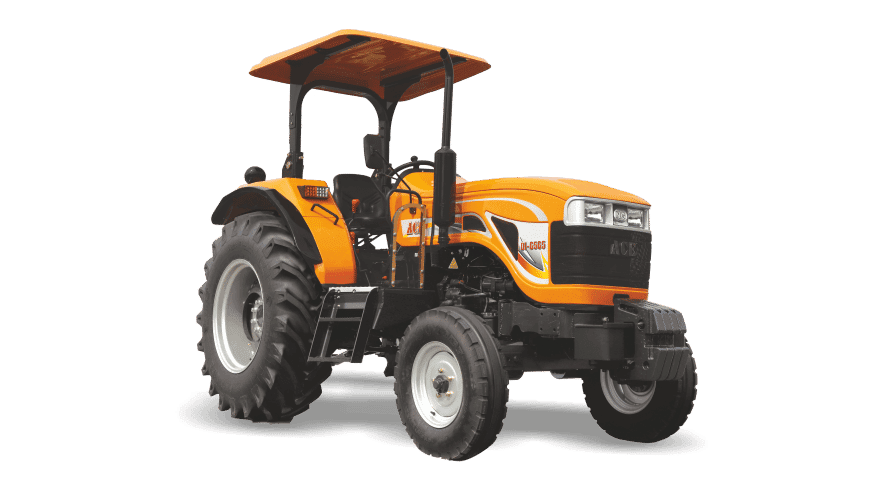

ACE DI 6565 V2

Key Features of ACE DI 6565 V2

• No. Of Cylinder

  4
• Power

  61
• Capacity (cc)

  4088 CC
• Fuel Tank Capacity

  65 litre
• Lifting Capacity

  2200 Kg
• Wheel Drive

  2 WD

Specifications of ACE DI 6565 V2

• Engine
  • No. Of Cylinder
    4
  • Power
    61
  • Capacity (cc)
    4088 CC
  • Air Filter
    Dry Type
  • Engine Rated RPM
    2200 RPM
  • Cooling Type
    Water Cooled

• Power Take Off (PTO) & Steering
  • PTO RPM
    540

• Transmission
  • Forward Speed
    30.85 kmph
  • Reverse Speed
    26.22 kmph
  • Clutch Type
    Double Clutch
  • Battery
    88 Ah-12V
  • Gear Box
    12 Forward + 12 Reverse
  • Alternator
    12V-42 Amp.

• Hydraulics & Brakes
  • Lifting Capacity
    2200 Kg
  • Brakes
    Oil Immersed Disc Brake

• Dimension & Capacity
  • Wheel Base
    2225 MM
  • Overall Length
    3815 MM
  • Overall Width
    1950 MM
  • Ground Clearance
    384 MM
  • Fuel Tank Capacity
    65 litre
  • Total Weight
    2505 KG

• Wheels & Tyres
  • Wheel Drive
    2 WD
