Agri King 20-55

Key Features of Agri King 20-55

• No. Of Cylinder

  3
• Power

  49
• Capacity (cc)

  3120 CC
• Lifting Capacity

  1800 Kg
• Wheel Drive

  2 WD

Specifications of Agri King 20-55

• Engine
  • Torque
    188
  • Capacity (cc)
    3120 CC
  • Engine Rated RPM
    2200 RPM
  • Cooling Type
    Water Cooled
  • No. Of Cylinder
    3
  • Power
    49
  • Air Filter
    Dry Type

• Power Take Off (PTO) & Steering
  • PTO RPM
    Dual Speed: 540 /1000 RPM

• Transmission
  • Gear Box
    16 Forward + 8 Reverse
  • Forward Speed
    1.9 – 33.7 kmph
  • Reverse Speed
    1.8 – 26.9 kmph
  • Clutch Type
    Double Clutch

• Hydraulics & Brakes
  • Brakes
    Oil Immersed Disc Brakes
  • Lifting Capacity
    1800 Kg
  • Tuning Radius with Brakes
    2750 MM
  • 3 point Linkage
    Automatic Depth & Draft Control 3-Point, Category I

• Dimension & Capacity
  • Overall Width
    1830 MM
  • Wheel Base
    1980 MM
  • Overall Length
    3600 MM
  • Total Weight
    2200 KG

• Wheels & Tyres
  • Wheel Drive
    2 WD

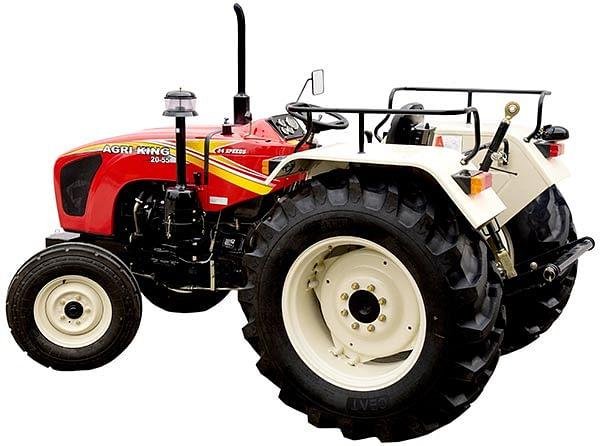

Agri King 20-55 images
