ACE DI 7500

Key Features of ACE DI 7500

• No. Of Cylinder

  4
• Power

  75
• Capacity (cc)

  4088 CC
• PTO Power

  64
• Fuel Tank Capacity

  65 litre
• Lifting Capacity

  2200 Kg
• Wheel Drive

  2 WD

Specifications of ACE DI 7500

• Engine
  • Cooling Type
    Turbo Charged
  • Torque
    305
  • Power
    75
  • Air Filter
    Dry Air Cleaner with Clogging Sensor
  • No. Of Cylinder
    4
  • Capacity (cc)
    4088 CC
  • Engine Rated RPM
    2200 RPM

• Power Take Off (PTO) & Steering
  • PTO Power
    64
  • PTO RPM
    540 / 540 E

• Transmission
  • Alternator
    12 V 65 Amp
  • Battery
    12 V 110 Ah
  • Clutch Type
    Dual Clutch
  • Gear Box
    12 Forward + 12 Reverse
  • Forward Speed
    1.52 - 31.25 kmph

• Hydraulics & Brakes
  • Lifting Capacity
    2200 Kg
  • 3 point Linkage
    ADDC CAT II
  • Tuning Radius with Brakes
    7420 - 7220 MM
  • Brakes
    Oil Immersed Disc Brakes

• Dimension & Capacity
  • Fuel Tank Capacity
    65 litre
  • Overall Length
    3990 MM
  • Overall Width
    2010 MM
  • Ground Clearance
    430 MM
  • Total Weight
    2650 KG
  • Wheel Base
    2135 MM

• Wheels & Tyres
  • Read Tyre Size
    16.9 x 30
  • Wheel Drive
    2 WD
  • Front Tyre Size
    7.50 x 16

• Others
  • Warranty
    2000 Hour / 2 Year

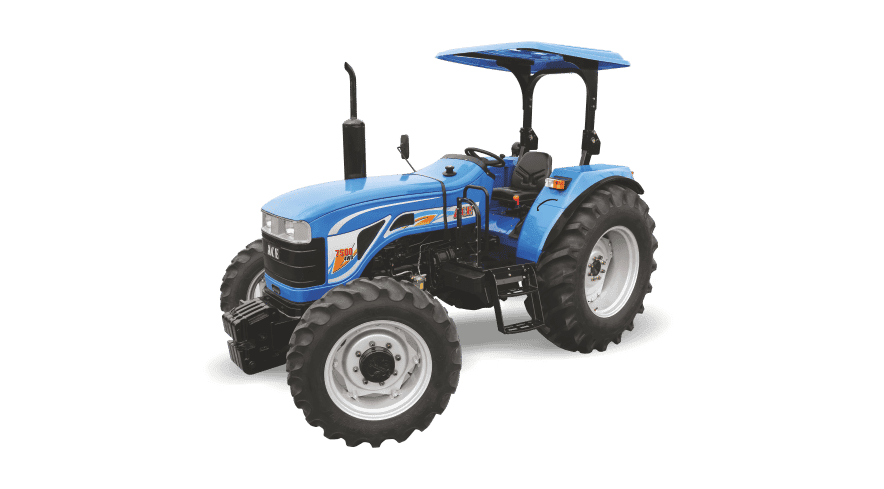

ACE DI 7500 images
