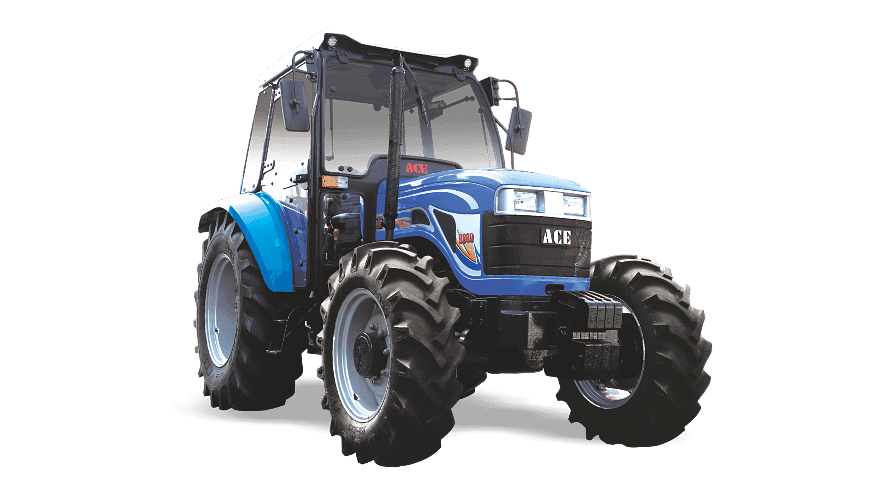

ACE DI 9000 4WD

Key Features of ACE DI 9000 4WD

• No. Of Cylinder

  4
• Power

  90
• Capacity (cc)

  4088 CC
• PTO Power

  75
• Fuel Tank Capacity

  65 litre
• Lifting Capacity

  2500 Kg
• Wheel Drive

  4 WD

Specifications of ACE DI 9000 4WD

• Engine
  • Torque
    355
  • Air Filter
    Dry Air Cleaner with Clogging Sensor
  • No. Of Cylinder
    4
  • Capacity (cc)
    4088 CC
  • Engine Rated RPM
    2200 RPM
  • Power
    90
  • Cooling Type
    Turbocharged with Intercooler

• Power Take Off (PTO) & Steering
  • PTO Power
    75
  • PTO RPM
    540 & 540 E

• Transmission
  • Battery
    12 V 110 Ah
  • Clutch Type
    Dual Clutch
  • Gear Box
    12 Forward + 12 Reverse
  • Alternator
    12 V 65 A
  • Forward Speed
    1.7 - 35.08 kmph

• Hydraulics & Brakes
  • Tuning Radius with Brakes
    4000 MM
  • 3 point Linkage
    ADDC CAT II
  • Brakes
    Oil Immersed Disc Brakes
  • Lifting Capacity
    2500 Kg

• Dimension & Capacity
  • Fuel Tank Capacity
    65 litre
  • Total Weight
    2976 KG
  • Wheel Base
    2235 MM
  • Overall Length
    4020 MM
  • Overall Width
    2040 MM
  • Ground Clearance
    420 MM

• Wheels & Tyres
  • Wheel Drive
    4 WD
  • Read Tyre Size
    18.4 x 30.0
  • Front Tyre Size
    12.4 x 24.0

• Others
  • Warranty
    2000 Hour / 2 Year

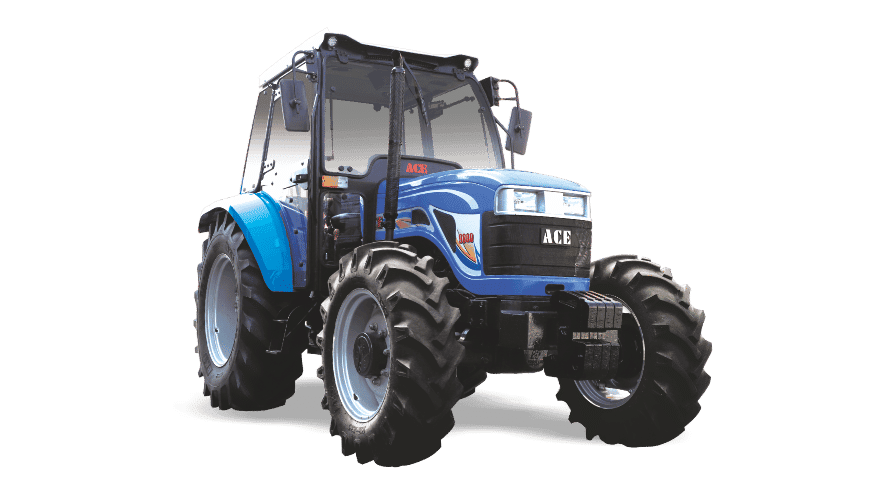

ACE DI 9000 4WD images
