Kartar 4036

Key Features of Kartar 4036

• No. Of Cylinder

  3
• Power

  40
• Capacity (cc)

  2430 CC
• PTO Power

  34.06
• Fuel Tank Capacity

  55 litre
• Lifting Capacity

  1800 Kg
• Wheel Drive

  2 WD

Specifications of Kartar 4036

• Engine
  • Capacity (cc)
    2430 CC
  • Air Filter
    Dry Type
  • Engine Rated RPM
    2200 RPM
  • Cooling Type
    Water Cooled
  • No. Of Cylinder
    3
  • Power
    40
  • Torque
    150

• Power Take Off (PTO) & Steering
  • PTO RPM
    540 RPM @ 1765 ERPM
  • PTO Power
    34.06

• Transmission
  • Alternator
    12 V 36 A
  • Clutch Type
    Single Clutch
  • Battery
    12 V 75 Ah
  • Gear Box
    8 Forward + 2 Reverse
  • Forward Speed
    31.97 kmph
  • Reverse Speed
    13.90 kmph

• Hydraulics & Brakes
  • Lifting Capacity
    1800 Kg
  • Brakes
    Oil immersed Brakes
  • 3 point Linkage
    Category-II Automatic Depth & Draft Control (ADDC)

• Dimension & Capacity
  • Fuel Tank Capacity
    55 litre
  • Overall Width
    1740 MM
  • Wheel Base
    2015 MM
  • Ground Clearance
    420 MM
  • Total Weight
    1955 KG
  • Overall Length
    3765 MM

• Wheels & Tyres
  • Read Tyre Size
    13.6 X 28
  • Wheel Drive
    2 WD
  • Front Tyre Size
    6.50x16

• Others
  • Warranty
    2000 Hours 2 Year
  • Accessories
    Tool Kit, Drawbar, Tow Hook, Top Link , Bumper

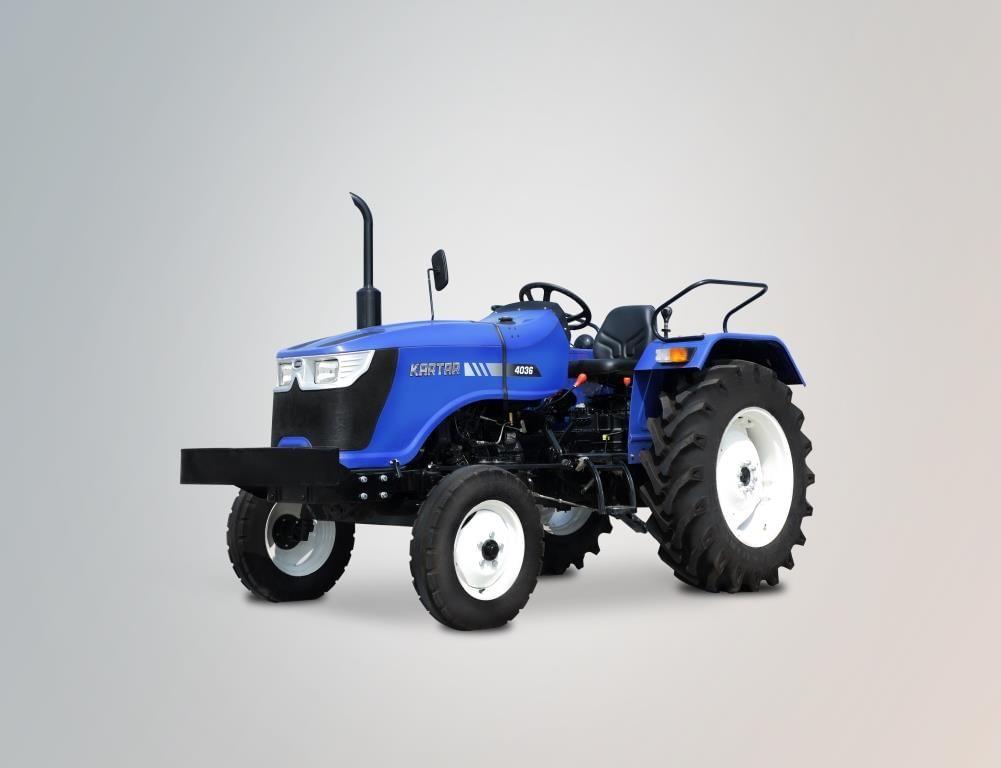

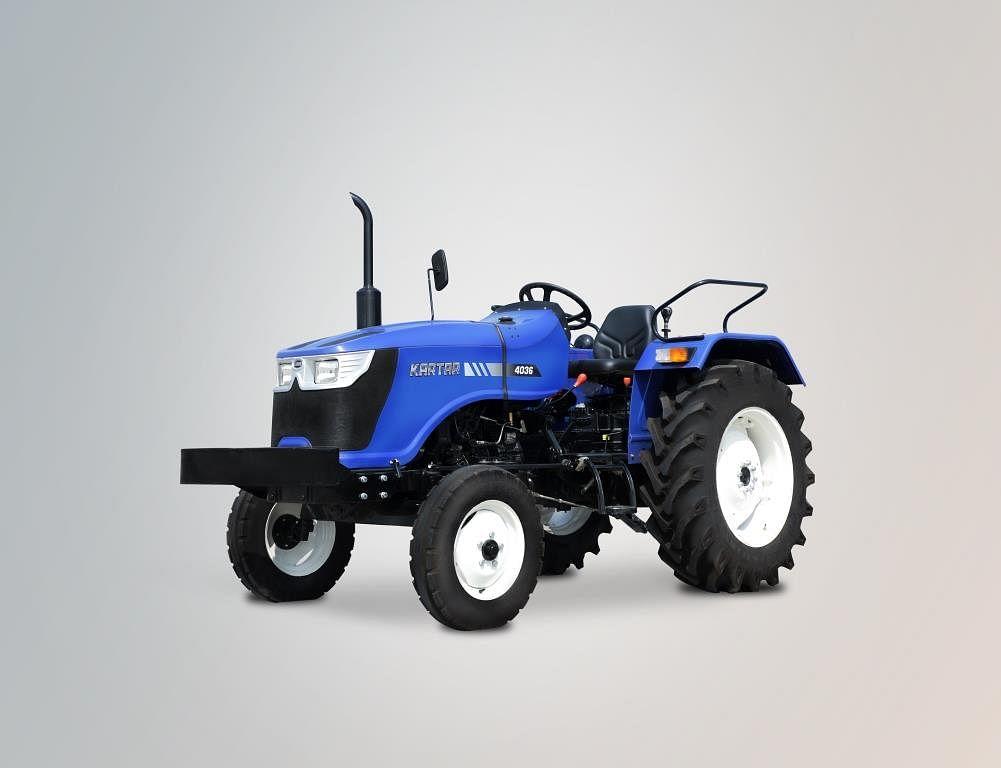

Kartar 4036 images
