Kartar 5936

Key Features of Kartar 5936

• No. Of Cylinder

  4
• Power

  60
• Capacity (cc)

  4160 CC
• PTO Power

  51
• Fuel Tank Capacity

  60 litre
• Lifting Capacity

  2200 Kg
• Wheel Drive

  4 WD

Specifications of Kartar 5936

• Engine
  • Power
    60
  • Air Filter
    Dry Type
  • No. Of Cylinder
    4
  • Engine Rated RPM
    2200 RPM
  • Cooling Type
    Water Cooled
  • Torque
    227
  • Capacity (cc)
    4160 CC

• Power Take Off (PTO) & Steering
  • PTO Power
    51
  • PTO RPM
    540 RPM @ 1968 ERPM, 540E @ 1650 ERPM

• Transmission
  • Battery
    12 V 100 AH
  • Alternator
    12 V 36 A
  • Gear Box
    12 Forward + 12 Reverse
  • Clutch Type
    Independent
  • Forward Speed
    35.47 kmph
  • Reverse Speed
    30.15 kmph

• Hydraulics & Brakes
  • Lifting Capacity
    2200 Kg
  • 3 point Linkage
    ADDC
  • Brakes
    Oil immersed Brakes

• Dimension & Capacity
  • Ground Clearance
    375 MM
  • Fuel Tank Capacity
    60 litre
  • Wheel Base
    2290 MM
  • Overall Length
    4030 MM
  • Overall Width
    1920 MM
  • Total Weight
    2780 KG

• Wheels & Tyres
  • Wheel Drive
    4 WD
  • Read Tyre Size
    16.9 X 28
  • Front Tyre Size
    9.50 x 24

• Others
  • Warranty
    2000 Hours 2 Year
  • Accessories
    Toolkit , Toplink , Bumper, Drawbar, ROPS, Canopy

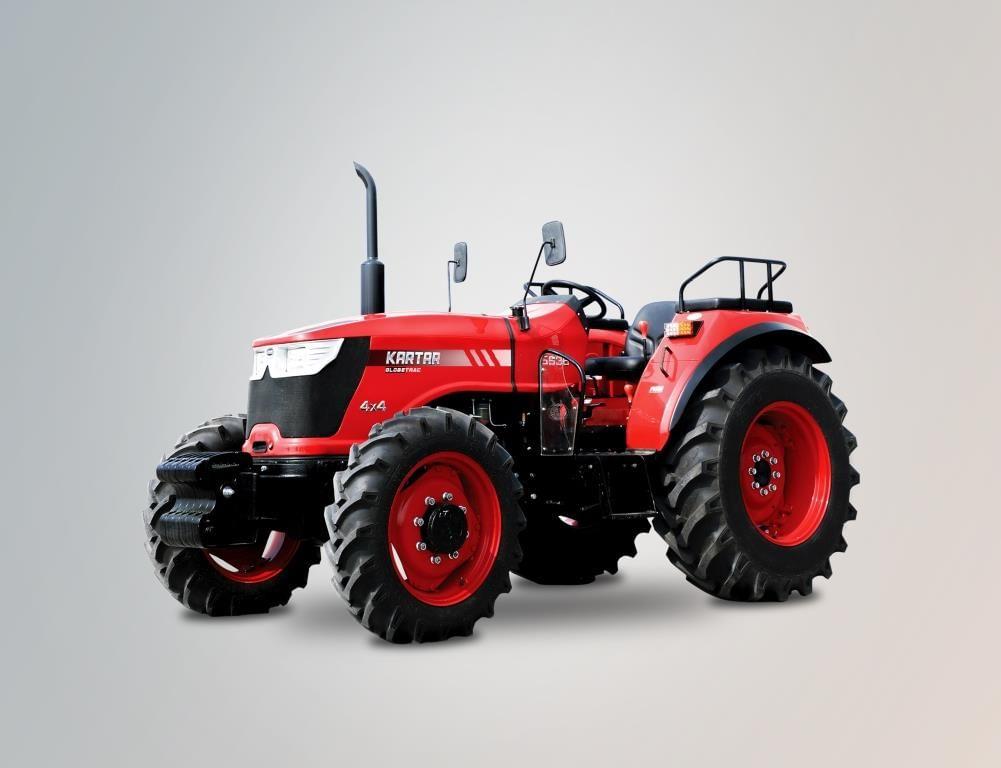

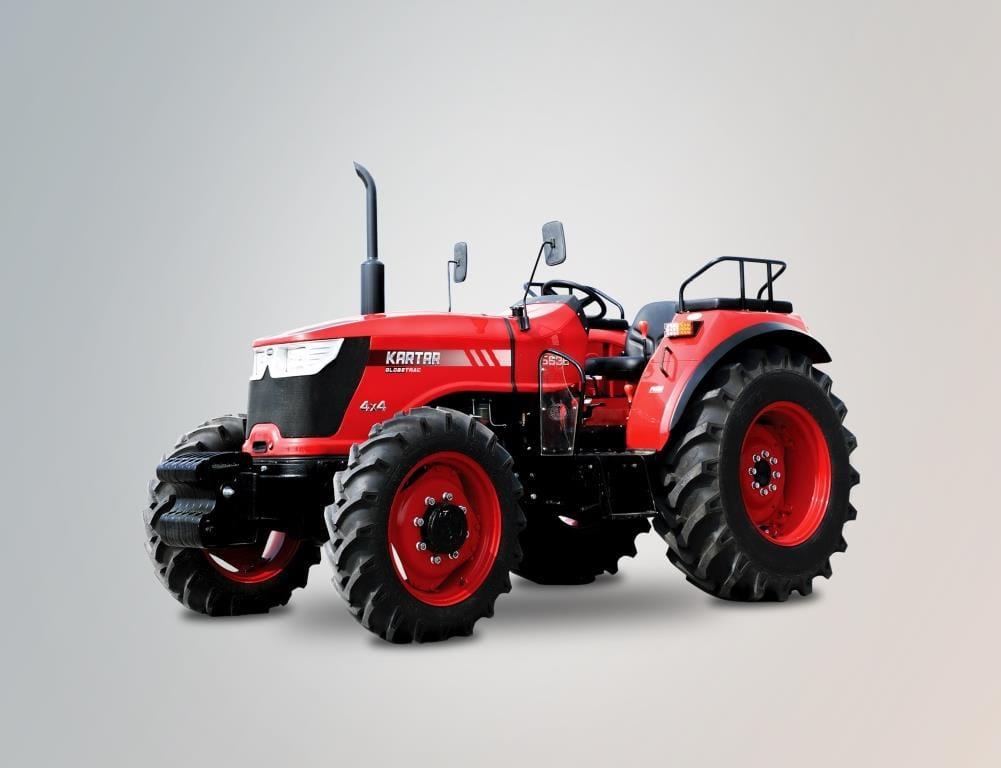

Kartar 5936 images

Kartar 5936 User Reviews & Rating
