Kubota MU5501 4WD

Key Features of Kubota MU5501 4WD

• No. Of Cylinder

  4
• Power

  55
• Capacity (cc)

  2434 CC
• PTO Power

  46.8
• Fuel Tank Capacity

  65 litre
• Lifting Capacity

  1800 - 2100 kg
• Wheel Drive

  4 WD

Specifications of Kubota MU5501 4WD

• Engine
  • Cooling Type
    Liquid Cooled
  • Engine Rated RPM
    2300 RPM
  • Power
    55
  • No. Of Cylinder
    4
  • Fuel Pump
    Inline
  • Capacity (cc)
    2434 CC
  • Air Filter
    Dry Type, Dual Element

• Power Take Off (PTO) & Steering
  • PTO Power
    46.8
  • PTO RPM
    STD : 540 @2300 ERPM, ECO : 750 @2200 ERPM, RPTO : 540R @2150 ERPM

• Transmission
  • Clutch Type
    Double Clutch
  • Battery
    12 V
  • Alternator
    40 Amp
  • Forward Speed
    3.0 - 31.0 kmph
  • Reverse Speed
    5.0 - 13.0 kmph
  • Gear Box
    8 Forward+ 4 Reverse

• Hydraulics & Brakes
  • Brakes
    Oil Immersed Disc Brakes
  • 3 point Linkage
    Draft, position and response control
  • Tuning Radius with Brakes
    3000 MM
  • Lifting Capacity
    1800 - 2100 kg

• Dimension & Capacity
  • Overall Width
    1850 MM
  • Ground Clearance
    415 MM
  • Fuel Tank Capacity
    65 litre
  • Total Weight
    2380 KG
  • Overall Length
    3250 MM
  • Wheel Base
    2050 MM

• Wheels & Tyres
  • Read Tyre Size
    16.9 X 28
  • Wheel Drive
    4 WD
  • Front Tyre Size
    9.5 X 24

• Others
  • Warranty
    5000 Hours / 5 Year
  • Accessories
    Tool, Toplink, Canopy, Hook, Bumper, Drawbar

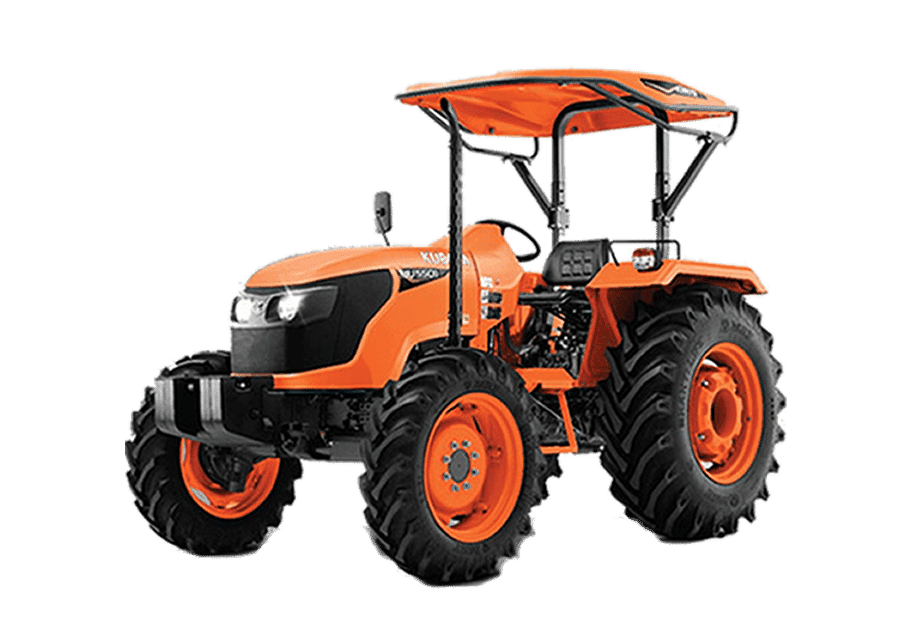

Kubota MU5501 4WD images
