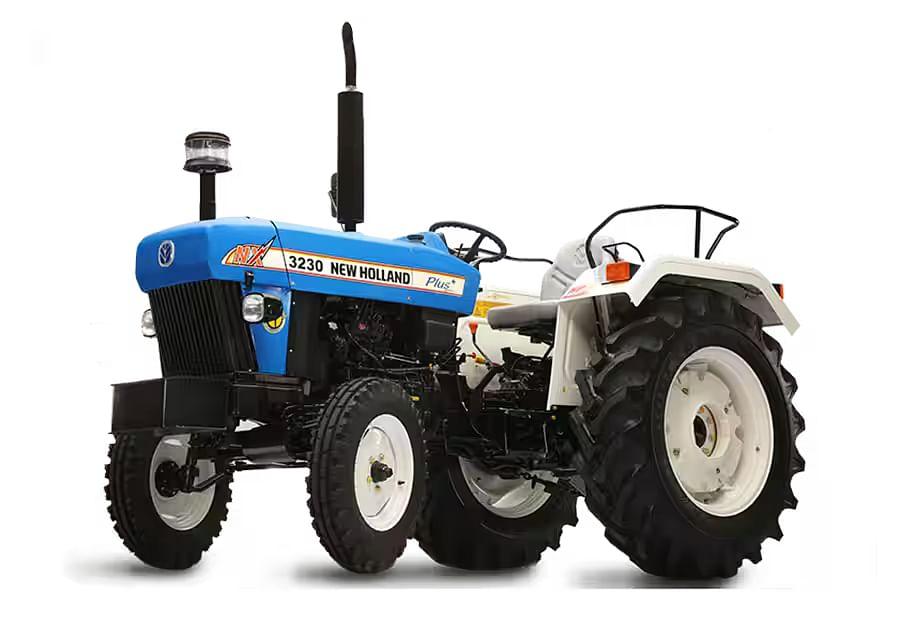

New Holland 3230 NX

Key Features of New Holland 3230 NX

• No. Of Cylinder

  3
• Power

  42
• Capacity (cc)

  2500 CC
• PTO Power

  39
• Fuel Tank Capacity

  46 litre
• Lifting Capacity

  1500 Kg
• Wheel Drive

  2 WD

Specifications of New Holland 3230 NX

• Engine
  • Power
    42
  • Capacity (cc)
    2500 CC
  • Cooling Type
    Water Cooled
  • No. Of Cylinder
    3
  • Engine Rated RPM
    2000 RPM
  • Air Filter
    Oil Bath Type with Pre-Cleaner
  • Torque
    166

• Power Take Off (PTO) & Steering
  • PTO Power
    39
  • PTO RPM
    540S, 540E*

• Transmission
  • Battery
    88 Ah
  • Gear Box
    8 Forward + 2 Reverse
  • Forward Speed
    2.92 – 33.06 kmph
  • Reverse Speed
    3.61 – 13.24 kmph
  • Clutch Type
    Single Clutch/ Double Clutch*
  • Alternator
    35 Amp

• Hydraulics & Brakes
  • 3 point Linkage
    ADDC
  • Lifting Capacity
    1500 Kg
  • Brakes
    Oil Immersed Multi Disc Brake

• Dimension & Capacity
  • Ground Clearance
    385 MM
  • Overall Length
    3330 MM
  • Wheel Base
    1930 MM
  • Overall Width
    1730 MM
  • Fuel Tank Capacity
    46 litre
  • Total Weight
    1815 KG

• Wheels & Tyres
  • Read Tyre Size
    13.6 X 28
  • Front Tyre Size
    6.0 X 16
  • Wheel Drive
    2 WD

• Others
  • Warranty
    6000 Hours or 6 Year
  • Options
    Remote Valve, Paddy Special - Double Metal Face Sealing, 55kg FWC
