Swaraj 724 XM

Key Features of Swaraj 724 XM

• No. Of Cylinder

  2
• Power

  25
• Capacity (cc)

  1824 CC
• PTO Power

  22.5
• Fuel Tank Capacity

  35 litre
• Lifting Capacity

  1000 Kg
• Wheel Drive

  2 WD

Specifications of Swaraj 724 XM

• Engine
  • No. Of Cylinder
    2
  • Power
    25
  • Engine Rated RPM
    1800 RPM
  • Cooling Type
    Water Cooled With No Less Tank
  • Air Filter
    3 - stage oil bath type
  • Capacity (cc)
    1824 CC

• Power Take Off (PTO) & Steering
  • PTO RPM
    540 / 1000
  • Steering Column
    Single Drop Arm
  • PTO Power
    22.5

• Transmission
  • Battery
    12 V 88 Ah
  • Gear Box
    8 Forward + 2 Reverse
  • Clutch Type
    Standard Single dry disc friction plate
  • Forward Speed
    2.19 - 27.78 kmph
  • Reverse Speed
    2.74 - 10.77 kmph
  • Alternator
    starter motor

• Hydraulics & Brakes
  • Lifting Capacity
    1000 Kg
  • Brakes
    Stanrad Dry Disc type / Oil Immersed Brake (Optional)
  • 3 point Linkage
    Automatic Depth and Draft Control, I&II type implement pins.

• Dimension & Capacity
  • Ground Clearance
    375 MM
  • Wheel Base
    1935 MM
  • Overall Length
    3320 MM
  • Overall Width
    1675 MM
  • Fuel Tank Capacity
    35 litre
  • Total Weight
    1750 KG

• Wheels & Tyres
  • Read Tyre Size
    12.4 x 28
  • Front Tyre Size
    6.00 x 16
  • Wheel Drive
    2 WD

• Others
  • Accessories
    TOOLS, BUMPER, Ballast Weight, TOP LINK, CANOPY, DRAWBAR, HITCH
  • Warranty
    2000 Hours Or 2 Year

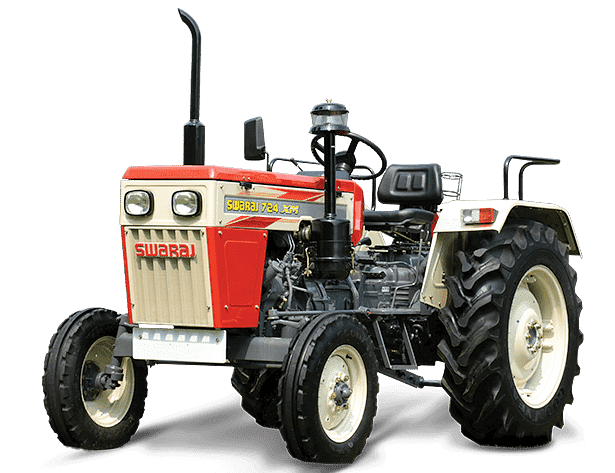

Swaraj 724 XM images
