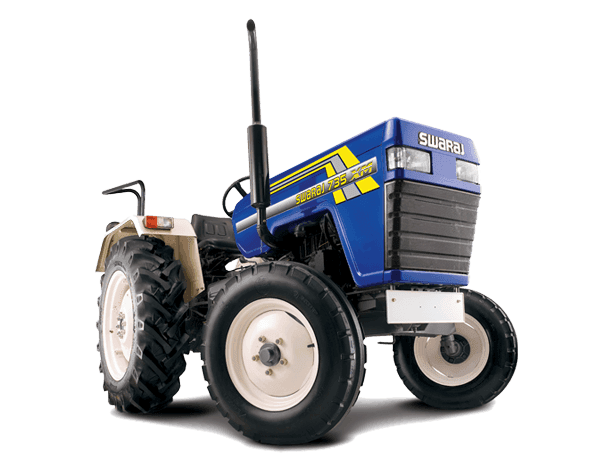

Swaraj 735 XM

Key Features of Swaraj 735 XM

• No. Of Cylinder

  3
• Power

  40
• Capacity (cc)

  2734 CC
• PTO Power

  29.8
• Fuel Tank Capacity

  47 litre
• Lifting Capacity

  1000 Kg
• Wheel Drive

  2 WD

Specifications of Swaraj 735 XM

• Engine
  • Engine Rated RPM
    1800 RPM
  • Cooling Type
    Water Cooled
  • Power
    40
  • No. Of Cylinder
    3
  • Capacity (cc)
    2734 CC
  • Air Filter
    3- Stage Oil Bath Type

• Power Take Off (PTO) & Steering
  • PTO Power
    29.8
  • PTO RPM
    540 / 1000
  • Steering Column
    Single Drop Arm

• Transmission
  • Battery
    12 V 88 Ah
  • Gear Box
    8 Forward + 2 Reverse
  • Clutch Type
    Single Dry Plate clutch
  • Forward Speed
    2.30 - 27.80 kmph
  • Reverse Speed
    2.73 - 10.74 kmph
  • Alternator
    starter motor

• Hydraulics & Brakes
  • Brakes
    Dry Disc Brakes
  • Lifting Capacity
    1000 Kg
  • 3 point Linkage
    Automatic Depth and Draft Control I and II type implement pins.

• Dimension & Capacity
  • Ground Clearance
    395 MM
  • Fuel Tank Capacity
    47 litre
  • Total Weight
    1895 KG
  • Wheel Base
    1950 MM
  • Overall Width
    1695 MM
  • Overall Length
    3470 MM

• Wheels & Tyres
  • Front Tyre Size
    6.00 x 16
  • Wheel Drive
    2 WD
  • Read Tyre Size
    12.4 x 28 / 13.6 x 28

• Others
  • Warranty
    2000 Hours Or 2 Year
  • Accessories
    TOOLS, BUMPER, Ballast Weight, TOP LINK, CANOPY, HITCH, DRAWBAR
