Swaraj 963 FE 4WD

Key Features of Swaraj 963 FE 4WD

• No. Of Cylinder

  3
• Power

  60
• Capacity (cc)

  3478 CC
• PTO Power

  53.6
• Fuel Tank Capacity

  60 litre
• Lifting Capacity

  2200 Kg
• Wheel Drive

  4 WD

Specifications of Swaraj 963 FE 4WD

• Engine
  • No. Of Cylinder
    3
  • Capacity (cc)
    3478 CC
  • Air Filter
    Dry Type
  • Engine Rated RPM
    2100 RPM
  • Cooling Type
    Water Cooled
  • Power
    60

• Power Take Off (PTO) & Steering
  • PTO Power
    53.6
  • PTO RPM
    540 & 540 E

• Transmission
  • Alternator
    starter motor
  • Clutch Type
    Mechanically actuated double clutch (independent PTO)
  • Gear Box
    12 Forward + 2 Reverse
  • Forward Speed
    0.90 - 31.70 kmph
  • Reverse Speed
    2.8 - 10.6 kmph
  • Battery
    12 V 100

• Hydraulics & Brakes
  • Lifting Capacity
    2200 Kg
  • Brakes
    Oil Immersed Type Disk Brakes
  • 3 point Linkage
    Category -II Fixed Type With Lower Links

• Dimension & Capacity
  • Overall Width
    1930 MM
  • Ground Clearance
    370 MM
  • Fuel Tank Capacity
    60 litre
  • Wheel Base
    2245 MM
  • Overall Length
    3735 MM
  • Total Weight
    3015 KG

• Wheels & Tyres
  • Read Tyre Size
    16.9 X 28
  • Wheel Drive
    4 WD
  • Front Tyre Size
    9.5 X 24

• Others
  • Warranty
    2000 hr / 2 Year

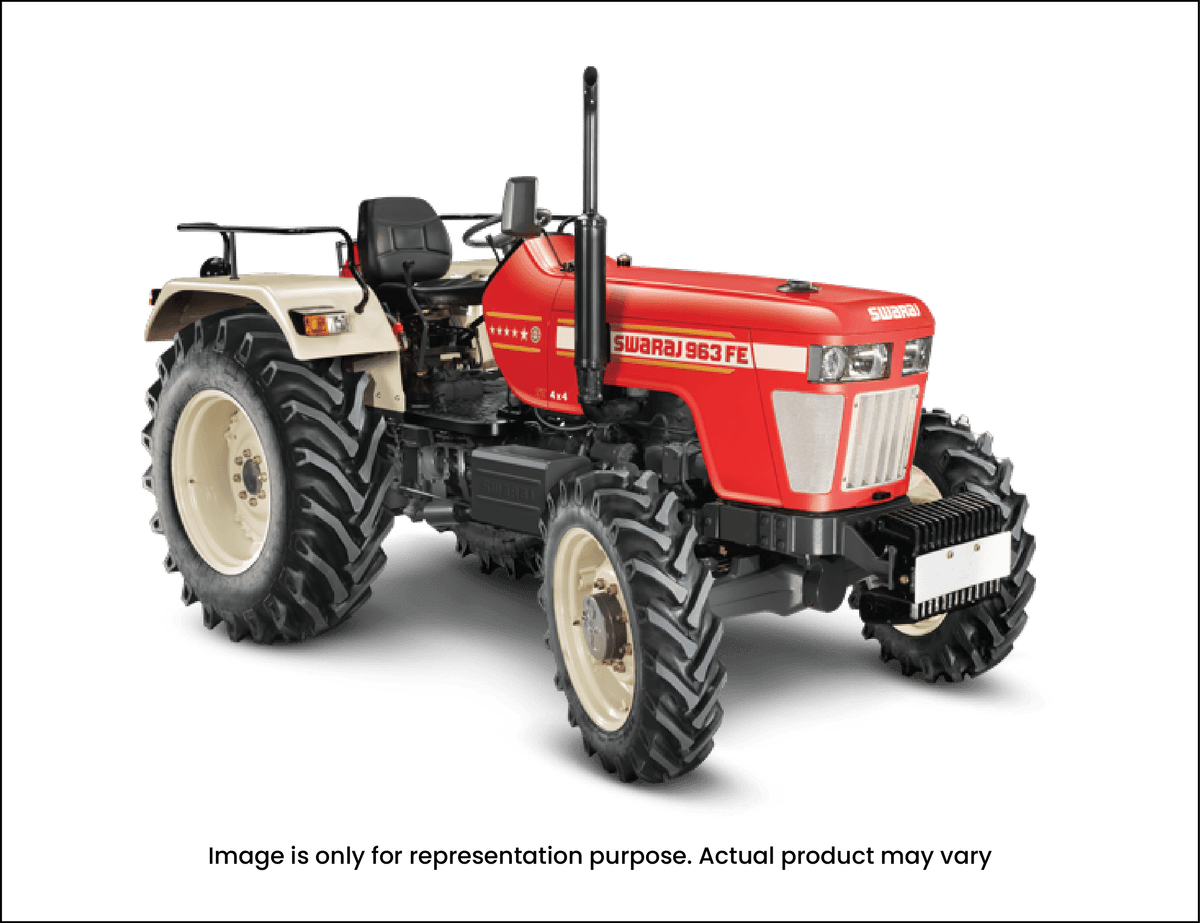

Swaraj 963 FE 4WD images
